The SRB-106 stainless steel recycling bin is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 30 cm depth and 80 cm height. Width scales with compartment count from 68 cm to 134 cm. The body is fabricated from AISI 304 stainless steel with radius-edge geometry. Each compartment carries an oval swing lid that rotates fully through 360 degrees over its opening.

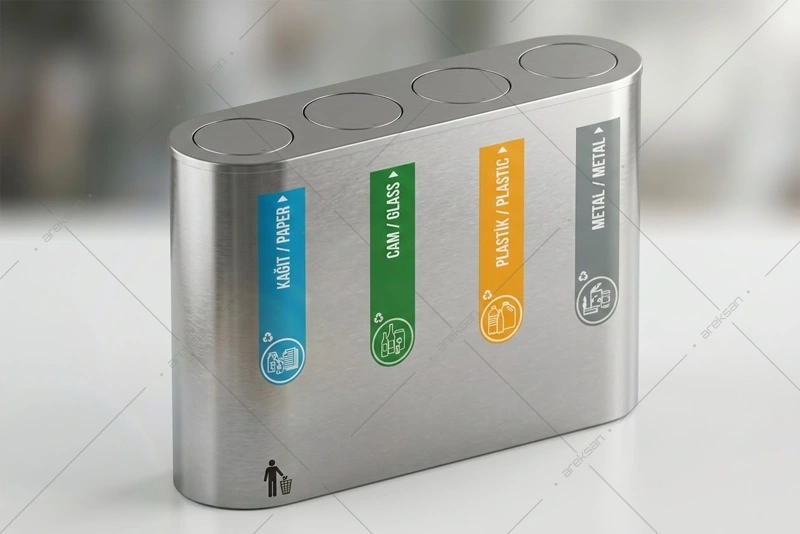

The SRB-106 is a freestanding curved-edge recycling unit with one rotating swing lid per compartment. Each lid pivots independently to expose the opening during disposal and returns to the closed position when released. The front face carries category labels and color-coded markings for paper, glass, plastic, and metal streams.
Swing-Lid Recycling Unit Configurations and Materials
Compartment Variants
The SRB-106 is offered in four configurations: 2 compartments (68 cm width), 3 compartments (82 cm), 4 compartments (108 cm), and 5 compartments (134 cm). Depth and height remain fixed at 30 cm and 80 cm across all variants.
Material Construction
The outer housing is fabricated from AISI 304 stainless steel. Edges of the body are radius-formed rather than squared, producing curved corners along the cylindrical profile. The swing lids are produced in matching 304 stainless steel.
Swing Lid Mechanism
Each compartment is fitted with an oval swing lid mounted on a pivot axis spanning the opening. The lid rotates fully through 360 degrees, allowing waste to be deposited from either direction and returning to the resting position after release.
Construction Specifications
All structural joints on the outer housing are welded, with weld seams ground smooth and edges deburred. The front face carries category pictograms and color-coded labels for paper, glass, plastic, and metal streams. Label sets and label languages are configured per project on request. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Width | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-106-2 | 2 | 30 cm | 68 cm | 80 cm | 164.00 |
| SRB-106-3 | 3 | 30 cm | 82 cm | 80 cm | 197.00 |
| SRB-106-4 | 4 | 30 cm | 108 cm | 80 cm | 260.00 |
| SRB-106-5 | 5 | 30 cm | 134 cm | 80 cm | 322.00 |
