The SRB-278 outdoor recycling bin is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 30 cm depth and 90 cm height. Length scales with compartment count from 64 cm to 154 cm. Standard production is offered in AISI 304 stainless steel or DKP cold-rolled steel with electrostatic powder coating, specified per project. A curved rain canopy is raised above the body on vertical supports, providing rainfall protection while leaving the disposal openings accessible. The product carries a registered design certification.
The SRB-278 is a freestanding rectangular recycling unit configured for outdoor placement, with short legs raising the body off the ground. Each compartment is accessed through an open top opening beneath the canopy. The front face carries category pictograms and bilingual labels for paper, glass, plastic, and other waste streams.
Outdoor Recycling Unit Configurations and Materials
Compartment Variants
The SRB-278 is offered in four configurations: 2 compartments (64 cm length), 3 compartments (94 cm), 4 compartments (124 cm), and 5 compartments (154 cm). Depth and height remain fixed at 30 cm and 90 cm across all variants.
Material Construction
The body, canopy, and structural elements are produced either from AISI 304 stainless steel or from DKP cold-rolled steel with electrostatic powder coating, specified per project. Color is matched to any RAL code for the DKP version. The construction is rated for outdoor exposure to rainfall, humidity, and temperature cycling.

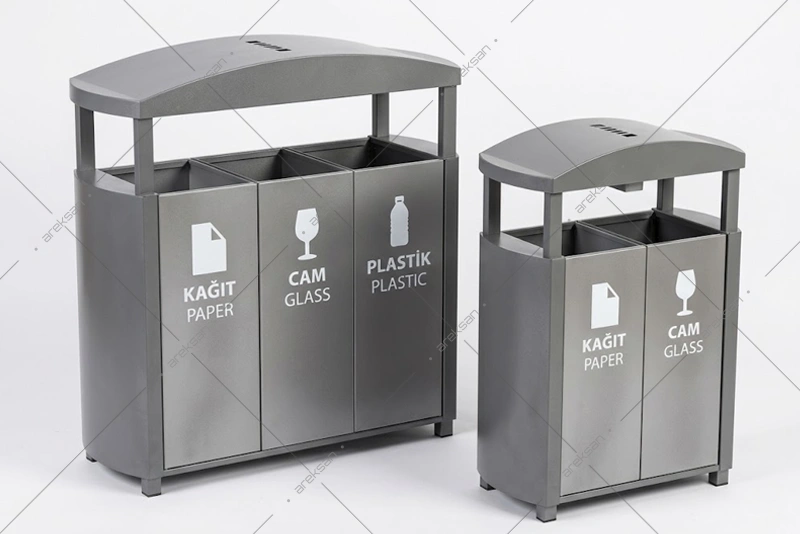

Curved Rain Canopy
A curved canopy is raised above the body on four vertical supports, leaving an open gap between the body rim and the cover. The canopy blocks direct vertical rainfall on the disposal openings while leaving the perimeter accessible for waste disposal from any side.
Easy Discharging System and Construction Specifications

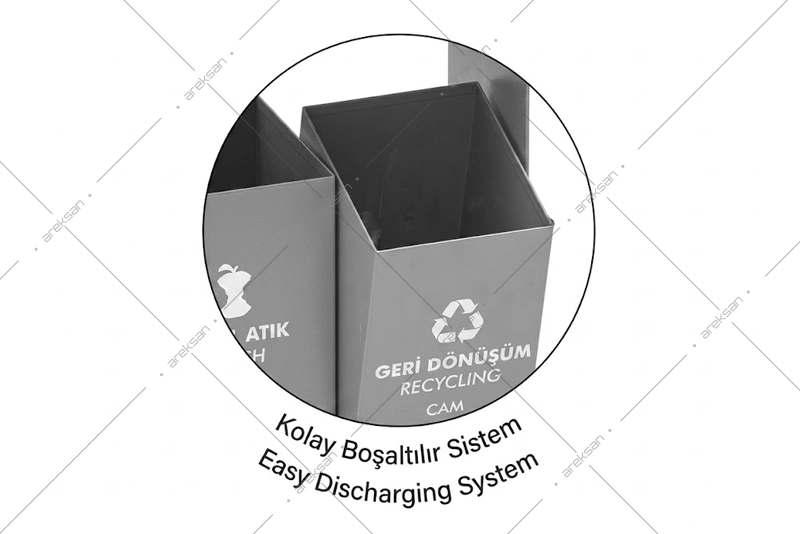

The SRB-278 features an easy discharging system: each compartment carries a separate removable insert that lifts out through the top for emptying and cleaning, without disassembling the outer frame. All structural joints are welded, with weld seams ground smooth and edges deburred. The product carries a registered design certification. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Length | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-278-2 | 2 | 30 cm | 64 cm | 90 cm | 173.00 |
| SRB-278-3 | 3 | 30 cm | 94 cm | 90 cm | 254.00 |
| SRB-278-4 | 4 | 30 cm | 124 cm | 90 cm | 335.00 |
| SRB-278-5 | 5 | 30 cm | 154 cm | 90 cm | 416.00 |
