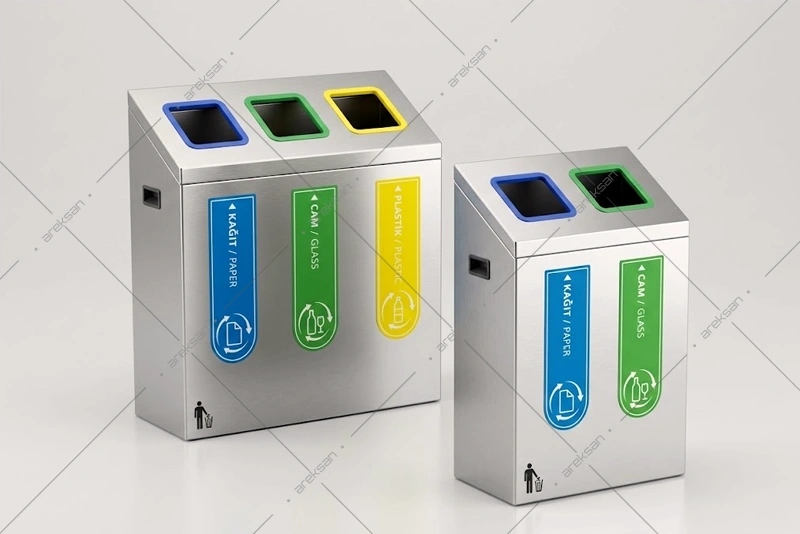

The SRB-137 stainless steel recycling bin is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 30 cm depth and 85 cm height. Length scales with compartment count from 60 cm to 138 cm. Standard production uses AISI 304 stainless steel for the outer housing with galvanized steel inner buckets; DKP cold-rolled steel with electrostatic powder coating is offered as an alternate construction. Each compartment carries a square top opening fitted with a colored frame insert keyed to its waste category.
The SRB-137 is a freestanding rectangular recycling unit with a flat horizontal top and individual square openings per compartment. Each opening is framed by a colored insert produced in any RAL color specified per project, with full-height color-coded panels on the front face carrying the waste category pictogram and bilingual label.
Square-Opening Recycling Unit Configurations and Materials
Compartment Variants
The SRB-137 is offered in four configurations: 2 compartments (60 cm length), 3 compartments (86 cm), 4 compartments (112 cm), and 5 compartments (138 cm). Depth and height remain fixed at 30 cm and 85 cm across all variants.
Material Construction
The standard outer housing is fabricated from AISI 304 stainless steel with galvanized steel inner liner buckets. As an alternate, the housing can be produced from DKP cold-rolled steel with electrostatic powder coating in any RAL color specified per project.
Square Top Openings and Color-Coded Frames
Each compartment carries a square top opening fitted with a colored frame insert. Frame colors are configured per project according to the waste categories in use, with any RAL code matched on order. The front face is fitted with full-height color-coded graphic panels carrying the waste category pictogram and bilingual label, matching the frame color of the corresponding compartment.
Construction Specifications
All structural joints are welded, with weld seams ground smooth and edges deburred. Mobility wheels are available for any configuration, and dimensions outside the standard table can be produced when project drawings are supplied. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Length | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-137-2 | 2 | 30 cm | 60 cm | 85 cm | 171.00 |
| SRB-137-3 | 3 | 30 cm | 86 cm | 85 cm | 246.00 |
| SRB-137-4 | 4 | 30 cm | 112 cm | 85 cm | 320.00 |
| SRB-137-5 | 5 | 30 cm | 138 cm | 85 cm | 394.00 |
