The SRB-147 stainless steel recycling bin is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 35 cm depth and 80 cm height. Length scales with compartment count from 65 cm to 155 cm, with capacities ranging from 182 to 434 liters. Standard production uses AISI 304 stainless steel; DKP cold-rolled steel with electrostatic powder coating is offered as an alternate construction. The unit is mounted on a contrasting pedestal base that raises the body off the ground.

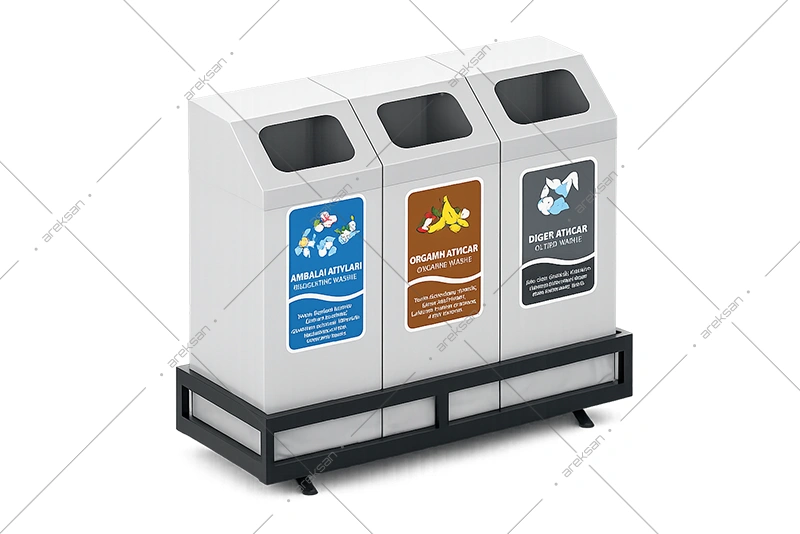

The SRB-147 is a freestanding rectangular recycling unit with a slightly sloped upper cap and slot openings for sorted waste streams. A continuous base frame elevates the main body above the floor level, finished in a contrasting color to the housing. The front face carries full-height color-coded graphic panels with category pictograms and bilingual labels.
Pedestal-Base Recycling Unit Configurations and Materials
Compartment Variants
The SRB-147 is offered in four configurations: 2 compartments (65 cm length, 182 liters), 3 compartments (95 cm, 266 liters), 4 compartments (125 cm, 350 liters), and 5 compartments (155 cm, 434 liters). Depth and height remain fixed at 35 cm and 80 cm across all variants.
Material Construction
The standard housing is fabricated from AISI 304 stainless steel. As an alternate, the housing can be produced from DKP cold-rolled steel finished with electrostatic powder coating in any RAL color specified per project.
Pedestal Base and Top Configuration
The unit is mounted on a continuous base frame that raises the main body above the floor surface. The base is finished in a contrasting color, typically darker than the housing, to visually separate the storage volume from the support structure. The upper cap is slightly sloped, with one slot opening per compartment positioned across the top surface.
Construction Specifications
All structural joints are welded, with weld seams ground smooth and edges deburred. The front face is fitted with full-height color-coded graphic panels carrying the waste category pictogram and bilingual label. Panel sets and label languages are configured per project on request. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Length | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-147-2 | 2 | 35 cm | 65 cm | 80 cm | 182.00 |
| SRB-147-3 | 3 | 35 cm | 95 cm | 80 cm | 266.00 |
| SRB-147-4 | 4 | 35 cm | 125 cm | 80 cm | 350.00 |
| SRB-147-5 | 5 | 35 cm | 155 cm | 80 cm | 434.00 |
