The SRB-170 powder-coated recycling bin is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 31 cm depth and 82 cm height. Length scales with compartment count from 76 cm to 160 cm, with capacities from 194 to 407 liters. The body is fabricated from DKP cold-rolled steel finished with electrostatic powder coating, paired with galvanized steel inner buckets. Each compartment carries a rectangular slot opening framed by a continuous color-coded band running across the top.

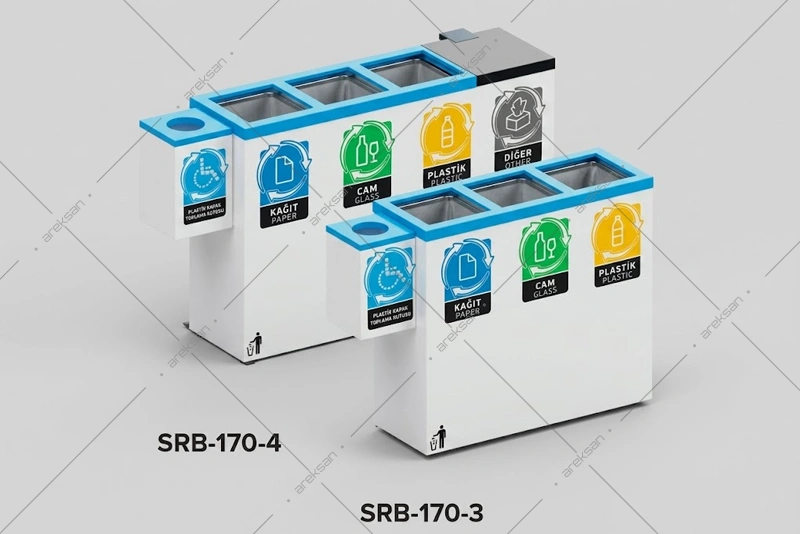

The SRB-170 is a freestanding rectangular recycling unit with a flat top surface and individual slot openings per compartment. A color-coded frame runs across the full length of the upper edge, with the front face carrying category pictograms and bilingual labels for paper, glass, plastic, and other waste streams.
Powder-Coated Recycling Unit Configurations and Materials
Compartment Variants
The SRB-170 is offered in four configurations: 2 compartments (76 cm length, 194 liters), 3 compartments (105 cm, 267 liters), 4 compartments (132 cm, 336 liters), and 5 compartments (160 cm, 407 liters). Depth and height remain fixed at 31 cm and 82 cm across all variants.
Material Construction
The outer housing is fabricated from DKP cold-rolled steel and finished with electrostatic powder coating. The inner liner buckets are produced from galvanized steel. Color is specified per project; any standard RAL code can be matched for the body and the top frame band.
Top Frame and Slot Configuration
A continuous color-coded frame band runs across the upper edge of the unit. Within this frame, each compartment is fitted with a rectangular slot opening sized for its assigned waste stream. The front face carries full-height color-coded graphic panels with category pictograms and bilingual labels.
Construction Specifications
All structural joints are welded, with weld seams ground smooth and edges deburred. The unit sits directly on the ground without flange or anchoring hardware. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Length | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-170-2 | 2 | 31 cm | 76 cm | 82 cm | 194.00 |
| SRB-170-3 | 3 | 31 cm | 105 cm | 82 cm | 267.00 |
| SRB-170-4 | 4 | 31 cm | 132 cm | 82 cm | 336.00 |
| SRB-170-5 | 5 | 31 cm | 160 cm | 82 cm | 407.00 |
