The SRB-200 powder-coated recycling bin set is produced in 2-, 3-, 4-, and 5-cylinder configurations, with each cylinder sharing a 32 cm depth and 72 cm height. Total length scales with the number of cylinders from 65 cm to 155 cm. The cylindrical bins are fabricated from AISI 430 stainless steel finished with electrostatic powder coating, with dome-shaped rotating lids that pivot through 360 degrees. The bins are seated in a continuous cradle frame at the base.

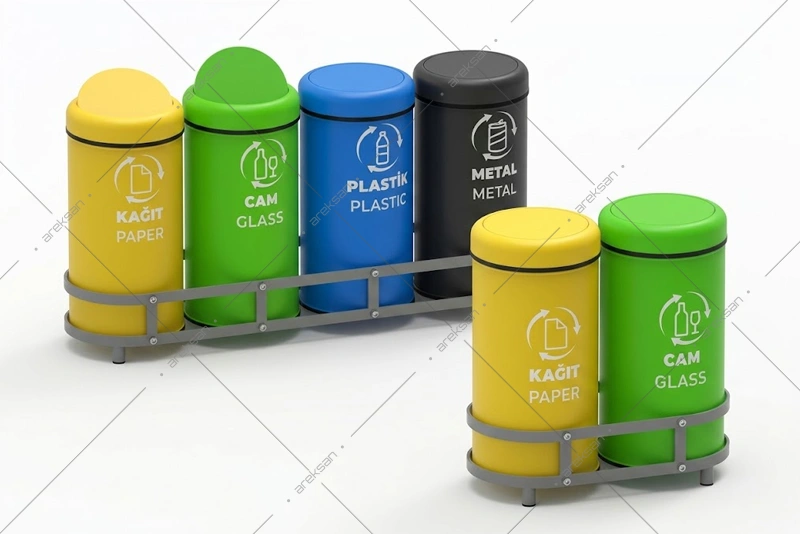

The SRB-200 is a freestanding set of cylindrical bins arranged side by side and seated in a single cradle frame. Each cylinder is produced in a separate color matched to its waste category, with a dome-shaped rotating lid and a circular front graphic label.
Powder-Coated Recycling Set with Dome Lids Configurations and Materials
Cylinder Variants
The SRB-200 is offered in four configurations: 2 cylinders (65 cm total length), 3 cylinders (95 cm), 4 cylinders (125 cm), and 5 cylinders (155 cm). Diameter and height remain fixed at 32 cm and 72 cm per cylinder across all variants.
Material Construction
The cylindrical bins and the dome lids are fabricated from AISI 430 stainless steel and finished with electrostatic powder coating across the full body surface. Color is specified per project; each cylinder can be assigned its own RAL code to differentiate waste streams. The cradle frame is fabricated from steel and finished with electrostatic powder coating in a contrasting color.
Dome Lid Mechanism
Each cylinder is fitted with a dome-shaped top lid mounted on a pivot axis spanning the opening. The lid rotates fully through 360 degrees, allowing waste to be deposited from either direction and returning to the resting position after release. The dome geometry blocks direct vertical access to the bin interior when the lid is at rest.
Cradle Frame and Construction Specifications
A continuous cradle frame supports the cylindrical bins along their base and lower sides. The frame consists of horizontal rails connected by vertical members between cylinders, holding each bin securely in position. All structural joints on both the bins and the frame are welded, with weld seams ground smooth and edges deburred. Production is project-based; retail sales are not offered.
| Code | Cylinders | Depth | Total Length | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-200-2 | 2 | 32 cm | 65 cm | 72 cm | 150.00 |
| SRB-200-3 | 3 | 32 cm | 95 cm | 72 cm | 219.00 |
| SRB-200-4 | 4 | 32 cm | 125 cm | 72 cm | 288.00 |
| SRB-200-5 | 5 | 32 cm | 155 cm | 72 cm | 358.00 |
