The SRB-141 outdoor floor-mounted recycling bin is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 35 cm depth and 100 cm height. Length scales with compartment count from 60 cm to 120 cm. Standard production uses AISI 304 stainless steel for the outer housing with galvanized steel inner buckets; DKP cold-rolled steel with electrostatic powder coating is offered as an alternate construction. A projecting top cap shields a continuous horizontal slot opening that runs across all compartments.
The SRB-141 is a floor-anchored rectangular recycling unit configured for outdoor placement. The body sits flat on the surface and is fixed in position through the base. A protruding upper cap extends forward and over the front face, sheltering the disposal slot from direct rainfall while leaving access open from below.
Outdoor Recycling Unit Configurations and Materials
Compartment Variants

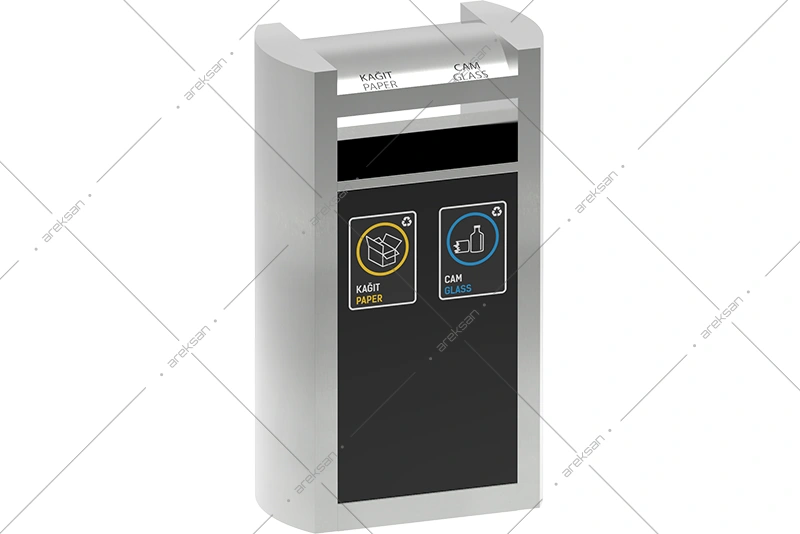

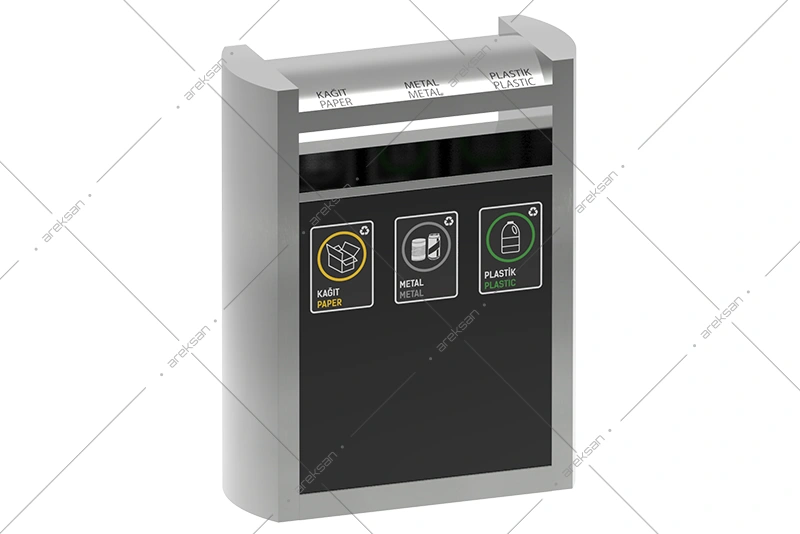

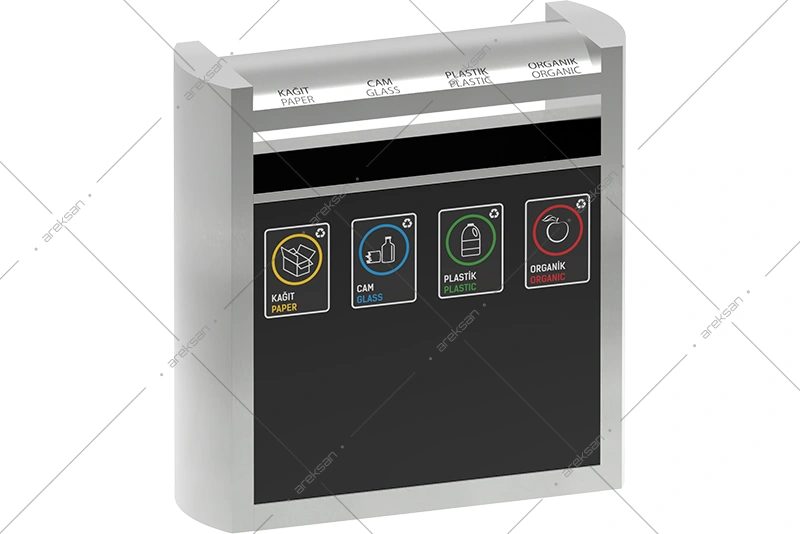

The SRB-141 is offered in four configurations: 2 compartments (60 cm length), 3 compartments (80 cm), 4 compartments (100 cm), and 5 compartments (120 cm). Depth and height remain fixed at 35 cm and 100 cm across all variants.
Material Construction
The standard outer housing is fabricated from AISI 304 stainless steel with galvanized steel inner liner buckets. As an alternate, the housing can be produced from DKP cold-rolled steel with electrostatic powder coating in any RAL color specified per project. The construction is rated for outdoor exposure to rainfall, humidity, and temperature cycling.
Rain Cover and Disposal Slot Configuration
A projecting top cap extends forward over the front face, forming a sheltered overhang. A continuous horizontal disposal slot runs beneath the cap across the full length of the unit, with internal divisions separating the compartments. The cap geometry blocks direct vertical rainfall on the slot opening.
Construction Specifications
All structural joints are welded, with weld seams ground smooth and edges deburred. The unit is configured for floor anchoring through the base. The front face carries circular color-coded graphic markers per compartment with category pictograms and bilingual labels. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Length | Height |
|---|---|---|---|---|
| SRB-141-2 | 2 | 35 cm | 60 cm | 100 cm |
| SRB-141-3 | 3 | 35 cm | 80 cm | 100 cm |
| SRB-141-4 | 4 | 35 cm | 100 cm | 100 cm |
| SRB-141-5 | 5 | 35 cm | 120 cm | 100 cm |
