The SRB-133 compact stainless steel recycling station is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 35 cm depth and 80 cm height. Length scales with compartment count from 60 cm to 135 cm. Standard production uses AISI 304 stainless steel for the outer housing with galvanized steel inner buckets; DKP cold-rolled steel with electrostatic powder coating is offered as an alternate construction, and Gold PVD coating is available on request.

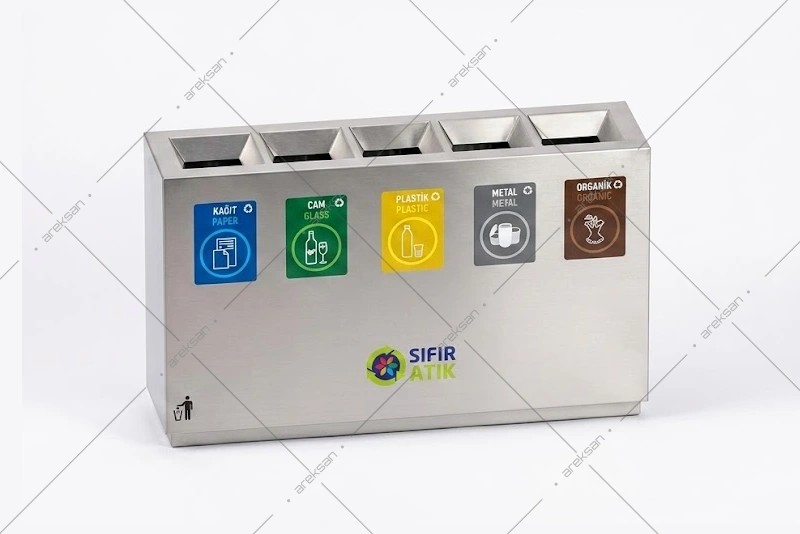

The SRB-133 is a freestanding rectangular recycling unit with individual top slot openings for each waste category. Compartments are separated internally and accessed from the top, with category pictograms and labels applied to the front face.
Compact Recycling Unit Configurations and Materials
Compartment Variants
The SRB-133 is offered in four configurations: 2 compartments (60 cm length), 3 compartments (85 cm), 4 compartments (110 cm), and 5 compartments (135 cm). Depth and height remain fixed at 35 cm and 80 cm across all variants. Compartment count is selected based on the number of waste streams to be sorted at the placement point.
Material Construction
The standard outer housing is fabricated from AISI 304 stainless steel with galvanized steel inner liner buckets. As an alternate, the housing can be produced from DKP cold-rolled steel with electrostatic powder coating in any RAL color specified per project. A Gold PVD coating is offered as an additional surface option for the stainless steel version.
Top Access and Sorting Configuration
Each compartment carries a dedicated top slot opening sized for its waste category. The front face is finished with color-coded pictograms and category labels for the configured waste streams. Label sets are arranged per project according to compartment count and waste types in use.
Construction Specifications
All structural joints are welded, with weld seams ground smooth and edges deburred. The unit sits directly on the ground without flange or anchoring hardware. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Length | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-133-2 | 2 | 35 cm | 60 cm | 80 cm | 168.00 |
| SRB-133-3 | 3 | 35 cm | 85 cm | 80 cm | 238.00 |
| SRB-133-4 | 4 | 35 cm | 110 cm | 80 cm | 308.00 |
| SRB-133-5 | 5 | 35 cm | 135 cm | 80 cm | 378.00 |
