The SRB-204 304 stainless steel recycling bin is produced in 2-, 3-, 4-, and 5-compartment configurations, all sharing a 35 cm depth and 80 cm height. Length scales with compartment count from 63 cm to 140 cm. The outer housing is fabricated entirely from AISI 304 stainless steel with first-class impregnated pine wood applied to the front face, paired with galvanized steel inner buckets. Each compartment is fitted with a 304 stainless steel swing lid above the disposal opening.
The SRB-204 is a freestanding rectangular recycling unit combining a 304 stainless steel structural body with a natural wood front panel. The wood panel carries category pictograms and bilingual labels for paper, glass, plastic, and metal streams. Stainless steel swing lids cover the top openings, returning to the closed position after release.
304 Stainless Steel Recycling Unit Configurations and Wood Panel
Compartment Variants

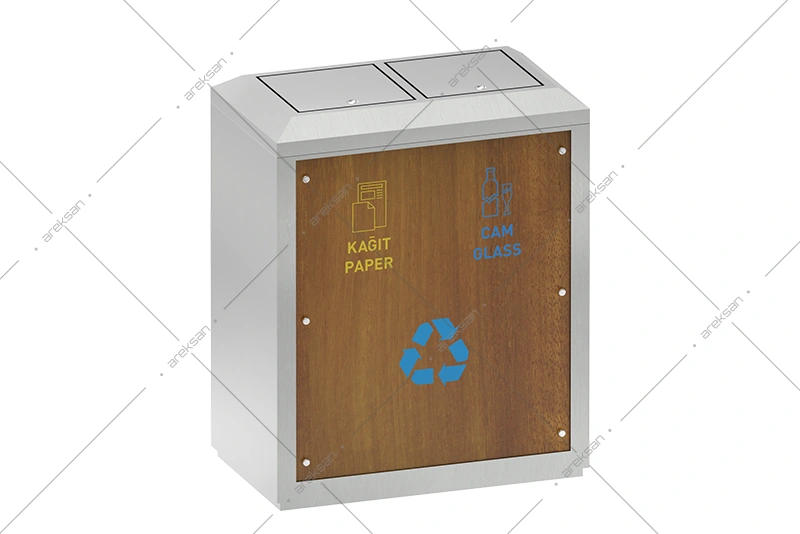

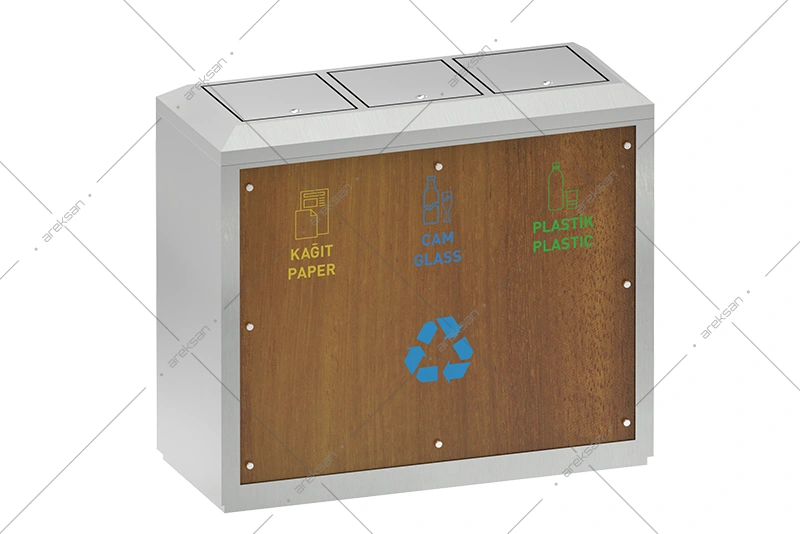

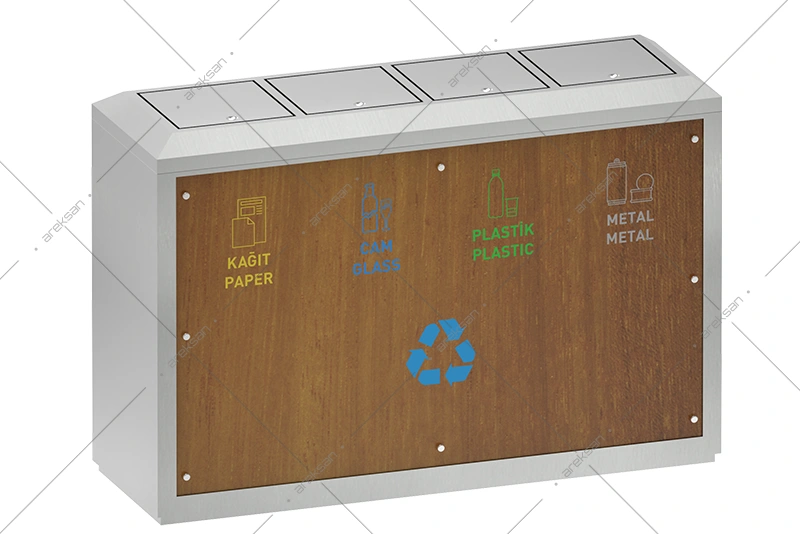

The SRB-204 is offered in four configurations: 2 compartments (63 cm length), 3 compartments (90 cm), 4 compartments (115 cm), and 5 compartments (140 cm). Depth and height remain fixed at 35 cm and 80 cm across all variants.
Material Construction
The outer housing, top cap, swing lids, and all structural elements are fabricated from AISI 304 stainless steel. The front face panel is produced from first-class impregnated pine wood, treated for indoor and protected outdoor use. The inner liner buckets are produced from galvanized steel.
Stainless Steel Swing Lids
Each compartment is fitted with a 304 stainless steel swing lid mounted on a pivot axis spanning the opening. The lid swings to expose the opening during disposal and returns to the resting position when released. Lids share the same brushed finish as the main 304 housing.
Wood Panel and Construction Specifications
The front face is finished with a first-class impregnated pine wood panel fixed to the 304 stainless steel frame with visible mechanical fasteners. Category pictograms and bilingual labels are applied directly to the wood panel surface. All structural joints on the stainless steel housing are welded, with weld seams ground smooth and edges deburred. Production is project-based; retail sales are not offered.
| Code | Compartments | Depth | Length | Height | Volume (L) |
|---|---|---|---|---|---|
| SRB-204-2 | 2 | 35 cm | 63 cm | 80 cm | 177.00 |
| SRB-204-3 | 3 | 35 cm | 90 cm | 80 cm | 252.00 |
| SRB-204-4 | 4 | 35 cm | 115 cm | 80 cm | 322.00 |
| SRB-204-5 | 5 | 35 cm | 140 cm | 80 cm | 392.00 |
