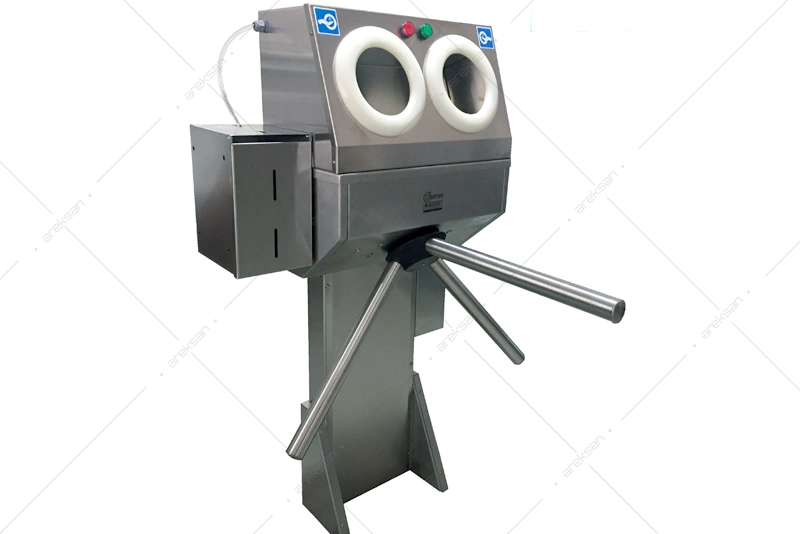

The Areksan AR-400 is a compact turnstile hand disinfection unit that supports both floor and wall mounting configurations, linking mandatory hand disinfection directly to controlled passage at any entry point. The dual-bowl basin system delivers 3–5 ml of disinfectant to both hands simultaneously without physical contact, while the turnstile mechanism remains locked until the disinfection cycle has been completed in full. Measuring 50 × 46 × 46 cm and weighing 17 kg, the unit is fabricated from 1.5 mm 304-grade stainless steel.
Compact Turnstile Hand Disinfection System with Flexible Wall and Floor Mounting Options
Dual-Bowl Basin Touchless Hand Disinfection and Enforced Turnstile Passage
The dual-bowl basin of the AR-400 automatically delivers 3–5 ml of disinfectant to both hands simultaneously without requiring physical contact. The turnstile mechanism remains locked until the disinfection cycle has been completed in full, removing hand hygiene compliance from individual discretion and establishing it as a systematic, auditable procedural requirement. The touchless operating principle eliminates cross-contamination risk during the disinfection process itself, ensuring that every personnel entry event results in consistent and standardized hand hygiene.
Flexible Installation: Wall Mounted and Floor Mounted Options
The AR-400 supports both floor mounting and wall mounting configurations, allowing the unit to be adapted to the specific spatial constraints of each installation point. Where floor space is limited, wall mounting provides a fully functional hygiene turnstile without occupying any ground area. Where wall mounting is not feasible, the unit can be deployed as a freestanding floor-mounted checkpoint. At 17 kg and with a compact footprint, the AR-400 is equally well suited for deployment as a supplementary disinfection point alongside an existing hygiene line.
Durable Construction and Modular Turnstile Design
The AR-400 enclosure is fabricated from 1.5 mm thick 304-grade stainless steel, providing maximum protection against corrosion, chemical disinfectants, and external environmental conditions. Turnstile arms are modular in construction and can be removed and reinstalled individually without specialized tooling, enabling routine maintenance and cleaning procedures to be completed efficiently without disrupting personnel flow.
Access Control System Compatibility
The AR-400 operates in full compatibility with access control units and token systems. The system is controllable via dry contact inputs, TTL and CMOS signal protocols, and supply voltages across the 5–48 V range, enabling seamless integration into existing entry management infrastructure without additional interface hardware. Operating voltage is field-configurable at 110/220 V – 60/50 Hz AC (±10%) or 24 V DC.
Technical Specifications
- Model No.: AR-400
- Dimensions: 50 × 46 × 46 cm
- Weight: 17 kg
- Material: 1.5 mm 304-Grade Stainless Steel
- Hand Disinfection: Dual-bowl basin, touchless, simultaneous 3–5 ml disinfectant delivery to both hands
- Mounting Options: Floor mounted or wall mounted
- Turnstile: Modular arms, individually removable design
- Operating Voltage: 110/220 V – 60/50 Hz AC (±10%) / 24 V DC
- Power Consumption: Standby ~11 W / Active Passage ~60 W
- Signal Compatibility: 5–48 V Dry Contact, TTL / CMOS
- Integration: Access control units, token systems, card-based entry systems
Typical Applications
The AR-400 turnstile hand disinfection unit is deployed across food production facilities, pharmaceutical plants, hospitals and healthcare institutions, and public buildings where mandatory hand hygiene enforcement at entry points is a regulatory or operational requirement. Its flexible mounting options and compact form factor make the AR-400 equally suitable as a primary hygiene checkpoint at space-constrained entry points, or as a supplementary disinfection station integrated alongside a larger sanitation line.
