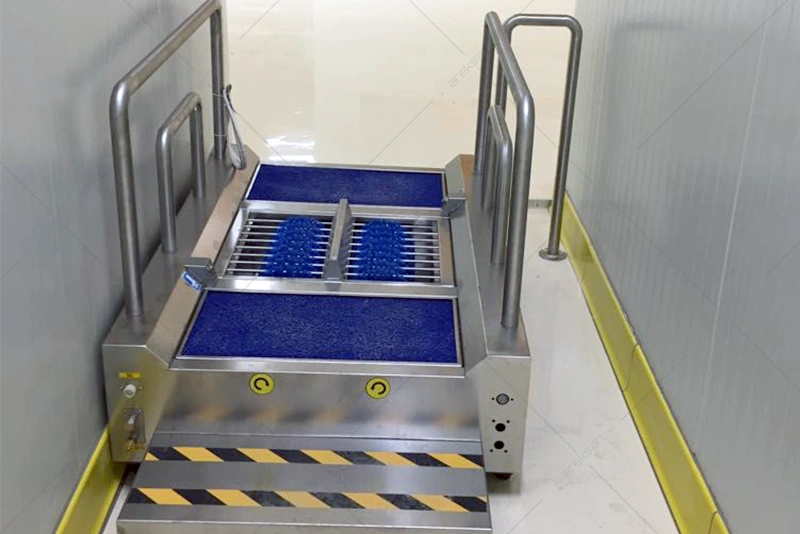

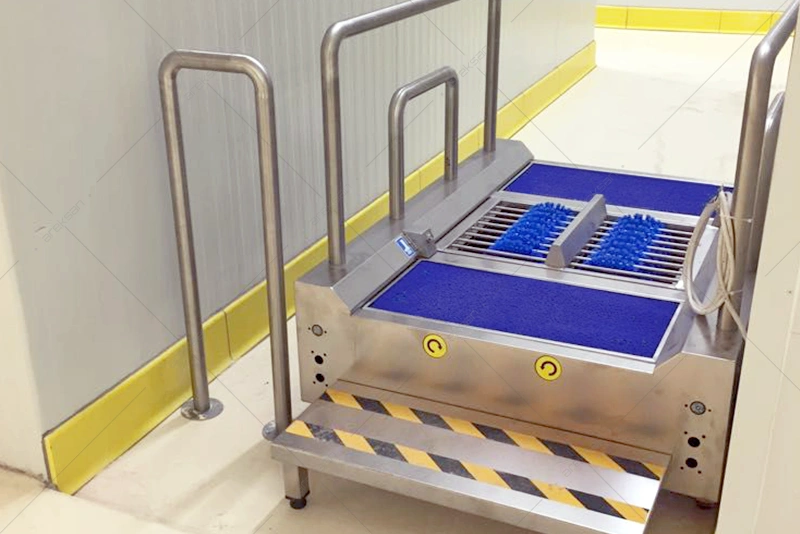

The Areksan AR-3000 is a horizontal brush hygiene barrier purpose-built for footwear sole decontamination at production facility entry and exit points. A stepped platform structure guides personnel through a controlled two-stage cleaning sequence: mechanical brushing with water followed by disinfectant solution application via the same brush system. Two independent geared-motor-driven brushes deliver consistent sole cleaning performance in both entry and exit directions. Overall dimensions are 1400 × 1100 × 1600 mm with an operating weight of 75 kg, fabricated from 304-grade stainless steel.
Two-Stage Sole Cleaning System with Stepped Platform for Controlled Entry and Exit Hygiene
Two-Stage Brushing and Disinfection Sequence
The AR-3000 delivers sole decontamination across two sequential stages within a single pass. In the first stage, footwear soles are mechanically scrubbed with water, removing visible soil, mud, and organic matter from the contact surface. In the second stage, disinfectant solution is evenly distributed across the brush surface and applied to the cleaned sole, completing the chemical decontamination cycle. This staged approach maximizes the effectiveness of the disinfectant by ensuring it is applied to a pre-cleaned surface rather than one contaminated with organic material that would otherwise reduce its efficacy.
Dual Independent Geared Motor Brush System
The two horizontal brushes of the AR-3000 are each driven by their own independent geared motor, allowing brushing force and rotational speed to be optimized separately for each unit. The modular brush design allows individual brushes to be removed and reinstalled without specialized tooling, making routine replacement and deep cleaning straightforward in high-utilization environments. This maintainability is particularly critical in food, pharmaceutical, and veterinary facilities where brush hygiene directly impacts the integrity of the decontamination process.
Stepped Platform Structure for Extended Brush Contact
The AR-3000 incorporates a stepped platform at both entry and exit sides of the unit. This design controls the pace at which personnel move across the brush surface, extending the duration of sole-to-brush contact and thereby increasing the mechanical cleaning and disinfectant exposure time per pass. The stepped approach also guides personnel into a defined foot placement zone, ensuring consistent and repeatable contact between footwear soles and the active brush surface at every entry and exit event.
Technical Specifications
- Model No.: AR-3000
- Dimensions: 1400 × 1100 × 1600 mm
- Weight: 75 kg
- Material: 304-Grade Stainless Steel
- Brush System: 2 × horizontal brushes, each with independent geared motor
- Brush Design: Modular, individually removable
- Stage 1: Mechanical sole scrubbing with water
- Stage 2: Disinfectant solution applied evenly across brush surface
- Platform: Stepped entry and exit structure for extended brush contact
Typical Applications
The AR-3000 sole cleaning hygiene barrier forms the first line of contamination defense at production area thresholds in food processing, pharmaceutical manufacturing, and veterinary facilities — environments where footwear-borne contaminants pose a direct risk to product integrity and regulatory compliance. The two-stage brushing and disinfection sequence, combined with the stepped platform design, ensures that sole decontamination is both thorough and consistent across every personnel entry and exit event, establishing the AR-3000 as a reliable foundation for the facility’s broader hygiene chain.
