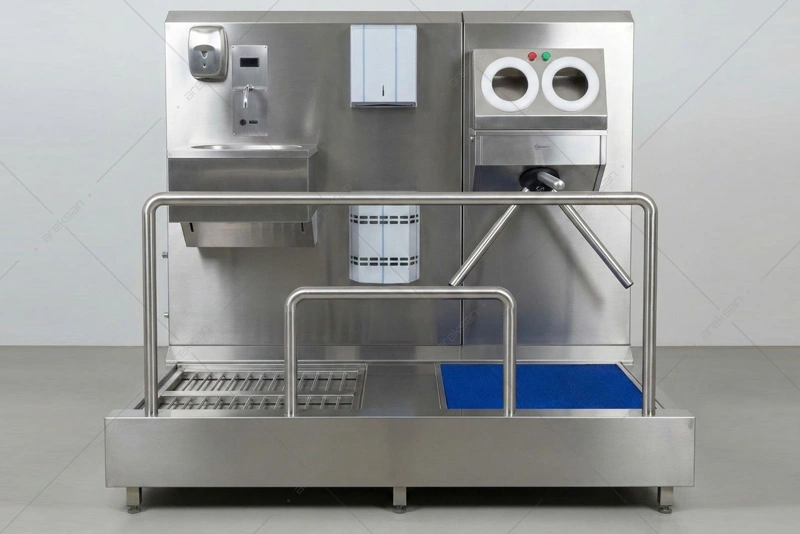

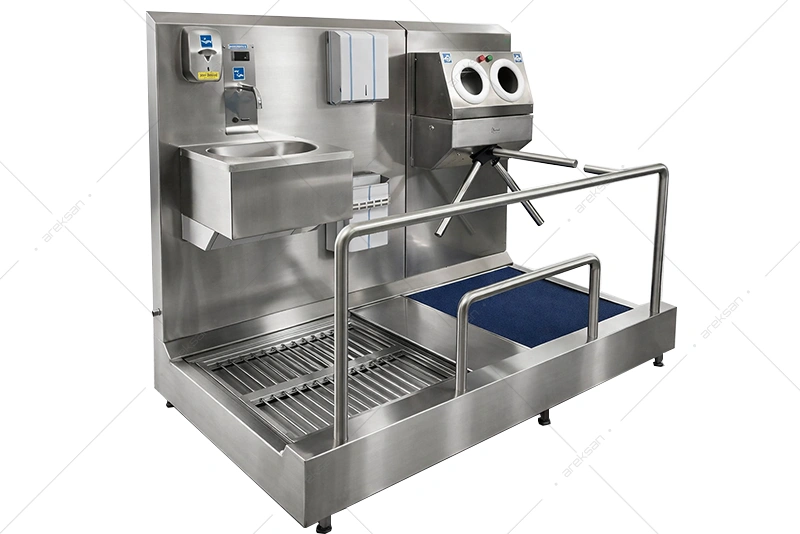

Hygiene Station with Turnstile – Sink-Integrated Hand and Foot Disinfection System
The Areksan AR-600 is a fully integrated hygiene station with turnstile, engineered for food production facilities, military catering kitchens, and institutional food service operations where HACCP compliance is a non-negotiable requirement. Built from 1.5 mm thick 304-grade stainless steel, the unit consolidates handwashing, sole disinfection, and controlled passage into a single, self-contained structure. Overall dimensions are 190 × 110 × 160 cm with an operating weight of 190 kg.
Timer Relay Control: Enforced Hygiene at Every Entry Point
As personnel approach the entry point, the unit automatically activates the timer relay. The turnstile mechanism remains locked until the operator-defined interval has elapsed — for instance, a standard 15-second handwashing cycle — making it physically impossible to bypass the hygiene sequence. This architecture transforms compliance from a voluntary practice into a measurable, auditable procedure. Functioning as a personnel hygiene barrier, the system ties physical access directly to the completion of each defined sanitation step.
Simultaneous Hand and Sole Hygiene in a Single Pass

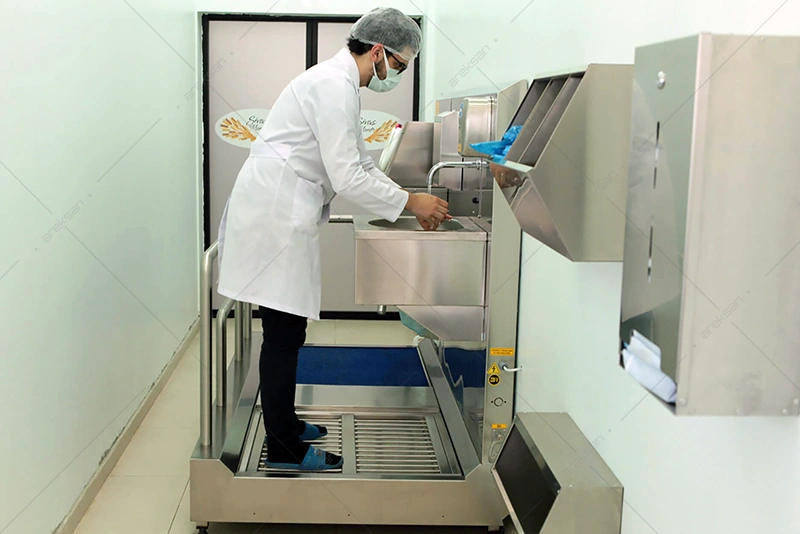

During the handwashing stage, personnel stand on a stainless steel drainage grating positioned over a disinfectant basin. The basin sanitizes footwear soles simultaneously, delivering bidirectional hygiene in a single interaction. This configuration eliminates cross-contamination at the point of entry and sustains an uninterrupted hygiene corridor throughout the entire sanitation line. Operating as a hygiene lock between the change room and the production floor, the AR-600 standardizes entry into a fully controlled protocol.
Structural Components: Sink, Faucet and Turnstile Mechanism
The sink bowl is deep-press formed, providing high resistance to surface deformation under sustained industrial use. The heavy-duty cast faucet delivers consistent, high-flow water output rated for demanding shift conditions. Turnstile arms are modular in design and can be removed without specialized tooling, streamlining routine maintenance and deep-cleaning procedures without interrupting production schedules.
Seamless Integration with Entry Control Systems
The AR-600 hygiene station with turnstile supports 5–48 V dry contact inputs and is fully compatible with TTL/CMOS signal protocols, enabling direct integration into existing ntry control systems without additional interface hardware. The unit operates alongside card readers, token mechanisms, and centralized building management platforms, making it a native component of both physical security and hygiene enforcement infrastructure. Operating voltage is field-configurable at 110/220 V AC or 24 V DC. Power draw measures approximately 11 W in standby and 60 W during active passage.
Technical Specifications
- Product Code: AR-600
- Material: 1.5 mm 304-Grade Stainless Steel
- Dimensions: 190 × 110 × 160 cm
- Weight: 190 kg
- Operating Voltage: 110/220 V AC – 24 V DC
- Power Consumption: Standby ~11 W / Active Passage ~60 W
- Signal Compatibility: 5–48 V Dry Contact, TTL / CMOS
- Integration: Card readers, token systems, access control units
Typical Applications
The AR-600 is the primary specification choice for centralized food production facilities, food processing and packaging plants, military catering operations, and any high- hroughput environment subject to mandatory HACCP protocols. By functioning as both a hygiene station with turnstile and a physical entry control system, the AR-600 enforces ersonnel hygiene compliance at the facility perimeter — safeguarding production line integrity and reducing contamination risk at its most critical point of entry.
