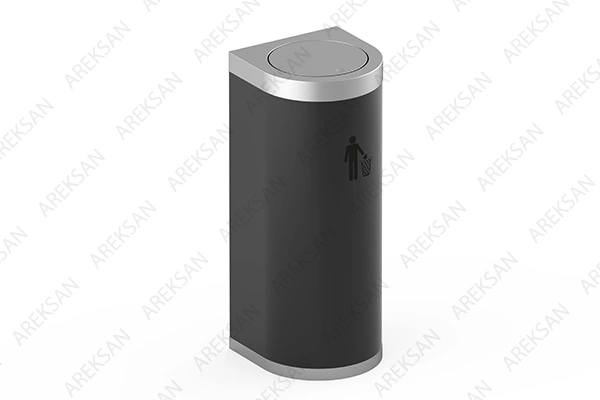

The SLB-116 rotating lid industrial waste bin features a 360° rotating dome lid on a cylindrical body. Body is manufactured from AISI 304 grade stainless steel. Volume is 68 L. Diameter is 30 cm, height is 75 cm. No paint or coating is applied. Manufactured on a project basis only.
SLB-116 Rotating Lid Industrial Waste Bin – Technical Specifications and Construction
The SLB-116 is manufactured with a 360° rotating dome lid mechanism that operates without a spring or pressure system. All welded joints are TIG processed and edges are finished smooth.
AISI 304 Stainless Steel Body
The body is fabricated from AISI 304 grade stainless steel. No paint or coating is applied. The brushed stainless steel finish is retained on all production units.

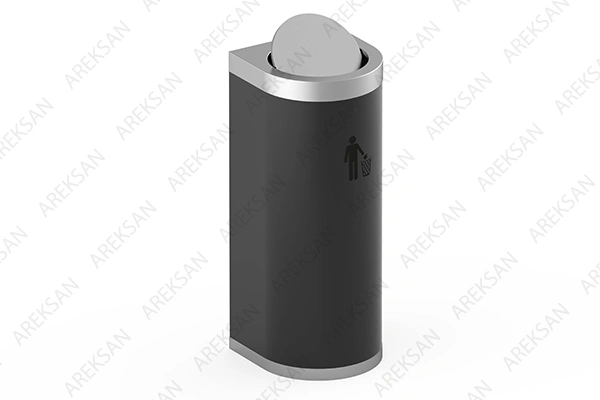

360° Rotating Dome Lid
The top dome lid rotates a full 360° for waste deposit from any direction. The mechanism operates without a spring or pressure system, keeping maintenance requirements at a minimum. The lid limits direct visibility of the bin contents during use.
Removable Inner Liner
The internal liner is fully removable. Bag replacement and interior cleaning are handled through the top opening.
TIG Welded Seams
All welded joints are processed with TIG welding and mechanically finished. Edges are ground smooth to eliminate sharp contact points.
Model Dimensions
| Code | Diameter | Height | Volume |
|---|---|---|---|
| SLB-116 | 30 cm | 75 cm | 68 L |
Technical Specifications
| Specification | SLB-116 |
|---|---|
| Material | AISI 304 Stainless Steel |
| Body Form | Cylindrical |
| Surface Finish | Brushed stainless steel, no coating |
| Lid Mechanism | 360° rotating dome, no spring or pressure system |
| Inner Liner | Removable |
| Volume | 68 L |
| Diameter | 30 cm |
| Height | 75 cm |
| Welding | TIG welded, edges finished |
| Custom Options | Available on project basis |
| Sales Model | Project-based manufacturing only |
