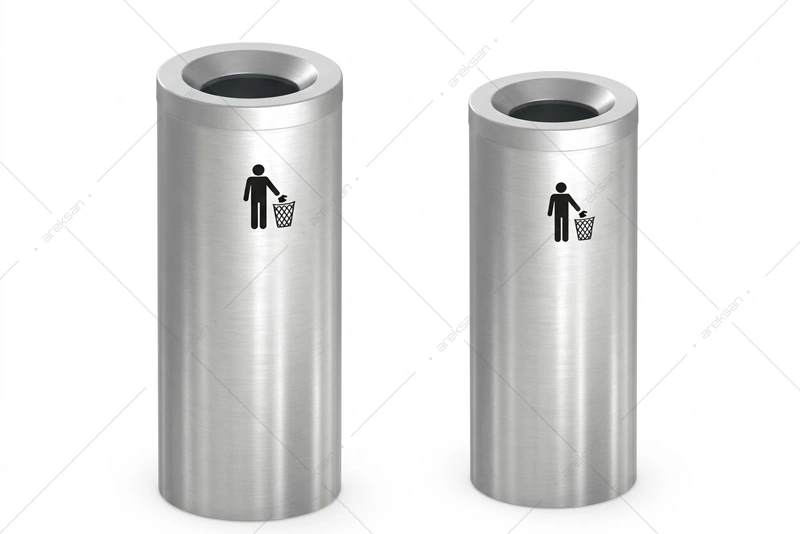

The SLB-127 ring top stainless steel waste bin has a cylindrical body with a ring-shaped top opening. Body is manufactured from AISI 304 grade stainless steel. Available in five volume options: 19 L, 23 L, 50 L, 73 L and 95 L. Diameter ranges from 20 cm to 40 cm. No paint or coating is applied. Manufactured on a project basis only.
SLB-127 Ring Top Waste Bin – Technical Specifications and Configuration Options
The SLB-127 is manufactured in five volume configurations sharing a common cylindrical body form and ring top structure. All welded joints are TIG processed and edges are finished smooth.
AISI 304 Stainless Steel Body
The body is fabricated from AISI 304 grade stainless steel. No paint or coating is applied. The natural brushed stainless steel finish is retained across all standard production units.
Ring Top Opening
The upper ring-shaped opening directs waste deposit and limits direct visibility of the bin contents. The ring is welded to the body and does not require operation during use.
Cylindrical Body
The cylindrical body form allows the unit to be positioned against walls or freestanding in open areas without dead space on the exterior surface.
Five Volume Options
The SLB-127 is manufactured in five standard sizes: 19 L, 23 L, 50 L, 73 L and 95 L. All sizes share the same body profile for visual consistency in multi-unit installations.
TIG Welded Seams
All welded joints are processed with TIG welding and mechanically finished. Edges are ground smooth to eliminate sharp contact points.
Model Dimensions
| Code | Diameter | Height | Volume |
|---|---|---|---|
| SLB-127 | 20 cm | 60 cm | 19 L |
| SLB-127 | 22 cm | 60 cm | 23 L |
| SLB-127 | 30 cm | 70 cm | 50 L |
| SLB-127 | 35 cm | 75 cm | 73 L |
| SLB-127 | 40 cm | 75 cm | 95 L |
Technical Specifications
| Specification | SLB-127 |
|---|---|
| Material | AISI 304 Stainless Steel |
| Body Form | Cylindrical |
| Top Opening | Ring shaped, fixed |
| Surface Finish | Brushed stainless steel, no coating |
| Volume Options | 19 L / 23 L / 50 L / 73 L / 95 L |
| Diameters | 20 / 22 / 30 / 35 / 40 cm |
| Heights | 60 / 70 / 75 cm |
| Welding | TIG welded, edges finished |
| Liner | Internal liner compatible |
| Custom Options | Available on project basis |
| Sales Model | Project-based manufacturing only |
