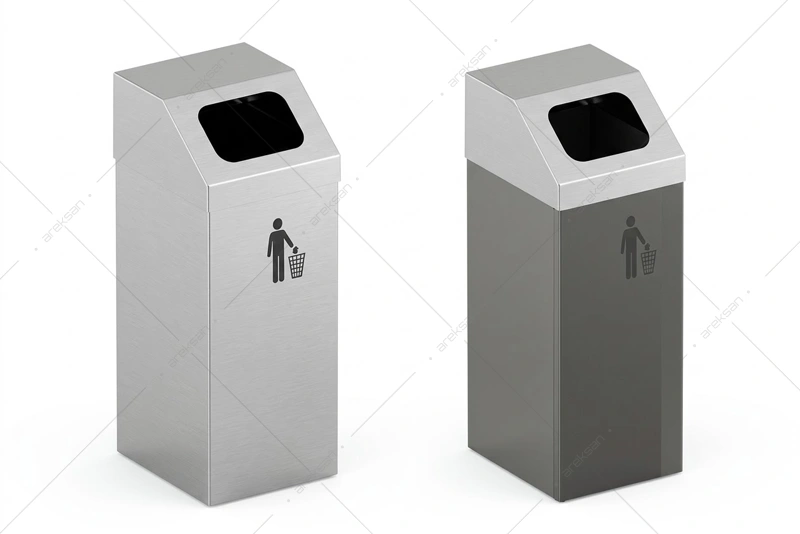

The SLB-104 open-top waste bin features a square-profile body and a lid with a rectangular top opening. Body and lid are manufactured from AISI 304 grade stainless steel. Available in six volume options from 33 L to 69 L and two surface finishes: brushed stainless steel (SLB-104) or electrostatic powder coated (SLB-104a). Manufactured on a project basis only.
SLB-104 Open-Top Waste Bin – Technical Specifications and Configuration Options
The SLB-104 is manufactured in six standard sizes and two finish variants. The rectangular opening on the lid restricts direct visibility into the bin interior while allowing direct waste deposit. All welded joints are TIG processed and edges are finished smooth.
AISI 304 Stainless Steel Body and Lid
Body and lid are fabricated from AISI 304 grade stainless steel. Two finish variants are produced from the same base body construction.
Two Finish Variants
The SLB-104 variant retains the natural brushed stainless steel surface without paint or coating. The SLB-104a variant is finished with electrostatic powder coating in any specified colour, allowing the unit to match corporate identity colours or interior design schemes.
Rectangular Top Opening
The lid features a rectangular opening that directs waste deposit and limits visibility of the interior contents. The lid is fixed and does not require operation during use.
Square Profile Body
The square body profile allows the unit to be positioned against walls and in corner installations without dead space. Two standard footprints are available: 24 × 24 cm and 30 × 30 cm.
Six Volume Options
The SLB-104 is manufactured in six standard sizes across three heights (56 cm, 66 cm, 76 cm) and two footprints (24 × 24 cm, 30 × 30 cm), delivering volumes from 33 L to 69 L. Both finish variants are available in all six sizes.
TIG Welded Seams
All welded joints are processed with TIG welding and mechanically finished. Edges are ground smooth to eliminate sharp contact points.
Model Dimensions
| Code | Depth | Width | Height | Volume |
|---|---|---|---|---|
| SLB-104 (Stainless) | 24 cm | 24 cm | 56 cm | 33 L |
| SLB-104 (Stainless) | 24 cm | 24 cm | 66 cm | 39 L |
| SLB-104 (Stainless) | 24 cm | 24 cm | 76 cm | 44 L |
| SLB-104 (Stainless) | 30 cm | 30 cm | 56 cm | 51 L |
| SLB-104 (Stainless) | 30 cm | 30 cm | 66 cm | 60 L |
| SLB-104 (Stainless) | 30 cm | 30 cm | 76 cm | 69 L |
| SLB-104a (Powder Coated) | 24 cm | 24 cm | 56 cm | 33 L |
| SLB-104a (Powder Coated) | 24 cm | 24 cm | 66 cm | 39 L |
| SLB-104a (Powder Coated) | 24 cm | 24 cm | 76 cm | 44 L |
| SLB-104a (Powder Coated) | 30 cm | 30 cm | 56 cm | 51 L |
| SLB-104a (Powder Coated) | 30 cm | 30 cm | 66 cm | 60 L |
| SLB-104a (Powder Coated) | 30 cm | 30 cm | 76 cm | 69 L |
Technical Specifications
| Specification | SLB-104 / SLB-104a |
|---|---|
| Material | AISI 304 Stainless Steel |
| Body Form | Square profile |
| Top Opening | Rectangular, fixed lid |
| Finish Variants | Brushed stainless (SLB-104) / Powder coated (SLB-104a) |
| Powder Coat Colour | Any specified colour |
| Volume Range | 33 L to 69 L |
| Volume Options | 33 / 39 / 44 / 51 / 60 / 69 L |
| Footprints | 24 × 24 cm / 30 × 30 cm |
| Heights | 56 / 66 / 76 cm |
| Welding | TIG welded, edges finished |
| Liner | Internal liner compatible |
| Sales Model | Project-based manufacturing only |
