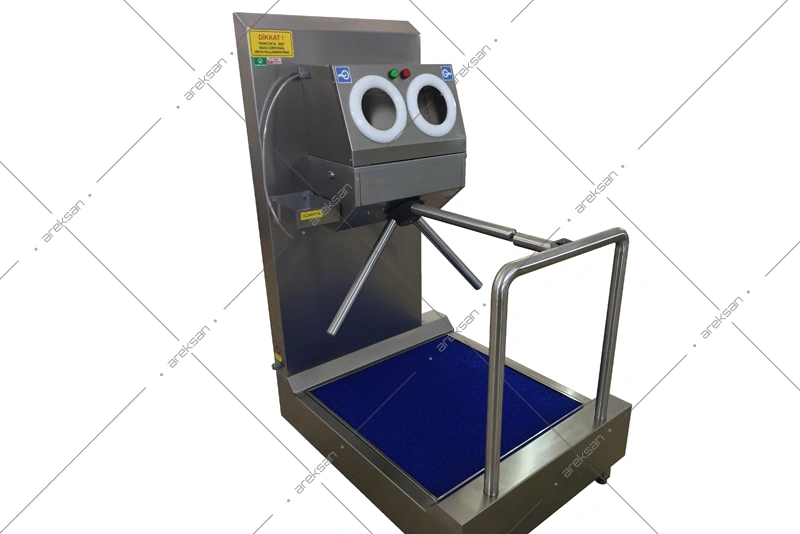

The Areksan AR-500 is a compact turnstile hygiene barrier that delivers simultaneous hand and foot disinfection at production facility entry points. The integrated touchless hand disinfection unit automatically delivers 3–5 ml of disinfectant to both hands in a single cycle, while the floor-mounted disinfection mat sanitizes footwear soles at the same time. The turnstile mechanism will not grant passage until the disinfection cycle has been completed. Measuring 86 × 110 × 160 cm and weighing 90 kg, the unit is fabricated from 1.5 mm 304-grade stainless steel.
Simultaneous Hand and Foot Disinfection in a Compact Turnstile Hygiene Barrier
Touchless Hand Disinfection and Simultaneous Foot Hygiene
The integrated hand disinfection unit of the AR-500 automatically delivers 3–5 ml of disinfectant to both hands simultaneously without requiring physical contact. The touchless operating principle eliminates cross-contamination risk during the disinfection process itself and ensures consistent, metered dosing across every personnel entry event — a critical requirement in high-throughput shift changeover conditions. The floor-mounted disinfection mat sanitizes footwear soles concurrently with hand disinfection, delivering bidirectional hygiene within a single pass. The turnstile mechanism remains locked until the full disinfection cycle has been completed.
Durable Construction and Modular Turnstile Design
The AR-500 enclosure is fabricated from 1.5 mm thick 304-grade stainless steel, providing high resistance to external environmental conditions, moisture, and chemical disinfectants. Its compact footprint allows straightforward deployment at narrow entry points where larger hygiene systems cannot be accommodated, making it a practical and reliable hygiene barrier solution for facilities with space constraints. Turnstile arms are modular in construction and can be removed and reinstalled individually without specialized tooling, streamlining routine maintenance and cleaning procedures.
Access Control System Compatibility
The AR-500 operates in full compatibility with all access control systems and token readers. The system is controllable via dry contact inputs, TTL and CMOS signal protocols, and low-voltage supply across the 5–48 V range, enabling seamless integration into existing entry management infrastructure without additional interface hardware. Operating voltage is field-configurable at 110/220 V – 60/50 Hz AC (±10%) or 24 V DC.
Technical Specifications
- Model No.: AR-500
- Dimensions: 86 × 110 × 160 cm
- Weight: 90 kg
- Material: 1.5 mm 304-Grade Stainless Steel
- Hand Disinfection: Touchless, simultaneous 3–5 ml disinfectant delivery to both hands
- Foot Disinfection: Floor-mounted disinfection mat, simultaneous with hand disinfection
- Turnstile: Modular arms, individually removable design
- Operating Voltage: 110/220 V – 60/50 Hz AC (±10%) / 24 V DC
- Power Consumption: Standby ~11 W / Active Passage ~60 W
- Signal Compatibility: 5–48 V Dry Contact, TTL / CMOS
- Integration: Access control systems, token readers, card-based entry systems
Typical Applications
The AR-500 hygiene barrier is deployed across food production and packaging facilities, hospitals and healthcare institutions, pharmaceutical manufacturing plants, and public buildings where hygiene protocols must be enforced at the point of entry. Its compact form factor and simultaneous hand and foot disinfection capability make the AR-500 a practical and dependable entry-point solution for facilities where space constraints limit the installation of larger hygiene systems, without compromising on the completeness of the hygiene protocol applied at every controlled access point.
