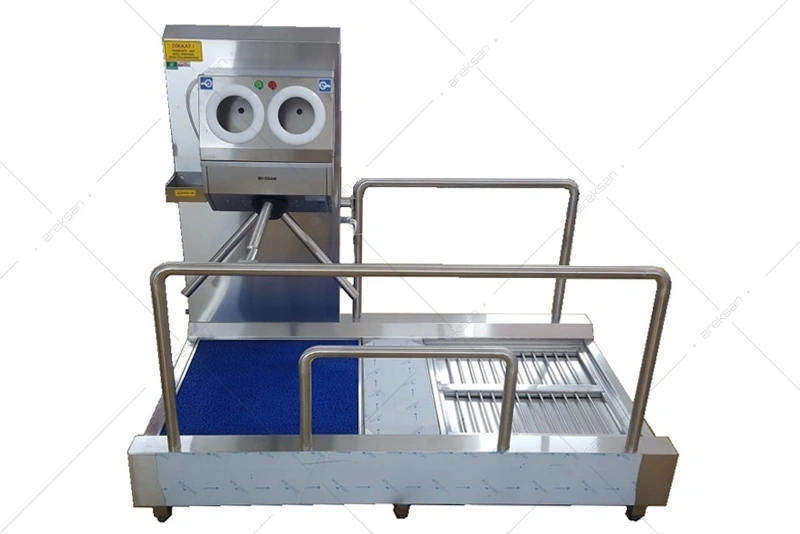

The Areksan AR-700 is a turnstile-integrated hygiene barrier with a grated disinfectant basin, engineered to enforce hygienic entry into production areas through controlled passage. The grated disinfectant basin at the entry point contacts and disinfects footwear soles on impact, neutralizing microorganism transfer at its point of introduction. Designed for food, pharmaceutical, healthcare, and cleaning product manufacturing industries, the AR-700 measures 180 × 110 × 160 cm, weighs 145 kg, and is fabricated from 1.5 mm 304-grade stainless steel.
Controlled Entry Hygiene System with Grated Disinfectant Basin and Turnstile Access Control
Grated Disinfectant Basin for Automatic Sole Decontamination
The grated disinfectant basin positioned at the entry section of the AR-700 brings footwear soles into direct contact with active disinfectant solution at the moment of passage, effectively neutralizing microbiological surface contamination without requiring any additional action from personnel. The grating structure ensures full and even contact with the disinfectant bath while providing a stable, slip-resistant walking surface. This passive yet continuously active system delivers automatic sole hygiene at every entry event without adding procedural steps to the personnel flow.
Modular Turnstile Design and Maintenance Accessibility
The AR-700 turnstile arms are modular in construction, each removable and reinstallable individually without specialized tooling. This design enables routine maintenance, deep cleaning, and component replacement to be carried out without interrupting production schedules. The 1.5 mm thick 304-grade stainless steel enclosure provides full protection against water ingress and external environmental conditions, ensuring long-term operational continuity across the full service life of the unit.
Access Control System Compatibility
The AR-700 operates in full compatibility with all access control units and token systems. The system is controllable via dry contact inputs, TTL and CMOS signal protocols, and low-voltage supply across the 5–48 V range, enabling seamless integration into existing entry management infrastructure without additional interface hardware. Operating voltage is field-configurable at 110/220 V – 60/50 Hz AC (±10%) or 24 V DC.
Technical Specifications
- Model No.: AR-700
- Dimensions: 180 × 110 × 160 cm
- Weight: 145 kg
- Material: 1.5 mm 304-Grade Stainless Steel
- Sole Disinfection: Grated disinfectant basin, active contact disinfection at point of entry
- Turnstile: Modular arms, individually removable design
- Operating Voltage: 110/220 V – 60/50 Hz AC (±10%) / 24 V DC
- Power Consumption: Standby ~11 W / Active Passage ~60 W
- Signal Compatibility: 5–48 V Dry Contact, TTL / CMOS
- Integration: Access control units, token systems, card-based entry systems
Typical Applications
The AR-700 hygiene barrier is deployed across food production and packaging facilities, pharmaceutical manufacturing plants, healthcare institutions, and cleaning product production environments where an uninterrupted hygiene chain is operationally mandatory. The grated disinfectant basin system delivers automatic sole decontamination at every entry event without adding procedural burden to personnel flow. Combined with its turnstile-enforced access control, the AR-700 functions as a reliable and low-maintenance component of the facility’s entry hygiene infrastructure.
