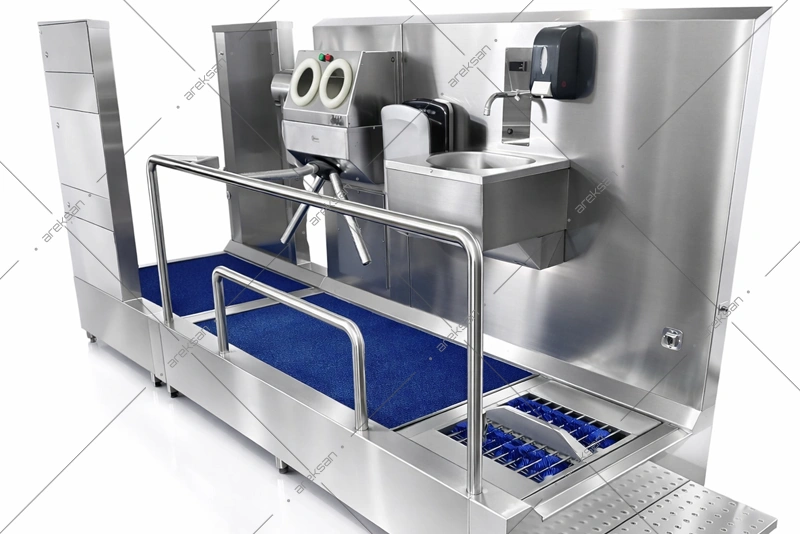

The AR-800S greenhouse hygiene station turnstile measures 340 cm in length and weighs 300 kg, fabricated from 1.5 mm 304-grade stainless steel with a water-resistant outer body. The unit combines pulverized misting, dual-motor sole brushing, a timer-controlled handwashing sink, and a turnstile gate into a single corridor assembly. Operating voltage is field-configurable across 110/220 V AC (50/60 Hz, ±10%) or 24 V DC.
The AR-800S is delivered as a complete corridor assembly housing four sequential hygiene functions in a single 340 cm enclosure. Misting and sole brushing operate in parallel during passage, while the turnstile arm remains locked until the timer relay completes the handwashing interval. The unit carries a registered design certification and a 10-year stainless steel warranty.
Greenhouse Hygiene Corridor Construction and Subsystems
Misting Unit and Sole Brushing System
The pulverized misting unit activates at waist level, delivering disinfectant spray across the upper body during passage. The sole cleaning system uses two Nylon 34 brushes, each driven by an independent geared motor so that brushing force and speed are adjustable per unit. Both systems run in parallel during the passage cycle.
Handwashing Sink and Timer Relay Control
The handwashing station is integrated into the corridor and operates on a timer relay circuit. The turnstile arm is held locked until the defined handwashing interval is completed by the relay output. The sink is deep-press formed in 304 stainless steel and fitted with a heavy-duty cast faucet. Turnstile arms are modular and can be removed and reinstalled without tooling.
Enclosure Material and Construction
The enclosure is fabricated from 1.5 mm 304-grade stainless steel with a water-resistant outer body. Welded joints are ground smooth and edges deburred. The construction is rated for the humidity, chemical exposure, and temperature cycling associated with greenhouse environments.
Access Control Compatibility and Power
The AR-800S accepts dry contact inputs, TTL and CMOS signal protocols across the 5–48 V range, and token-based systems. Operating voltage is field-configurable at 110/220 V AC (50/60 Hz, ±10%) or 24 V DC. Standby power draw is 11 W, rising to 60 W during active passage.
| Specification | Value |
|---|---|
| Model No. | AR-800S |
| Length | 340 cm |
| Weight | 300 kg |
| Material | 1.5 mm 304-grade stainless steel |
| Misting Unit | Pulverized spray, active from waist level |
| Sole Brushing | 2 × Nylon 34 brushes, independent geared motors |
| Sink | Deep-press formed, heavy-duty cast faucet |
| Operating Voltage | 110/220 V AC (50/60 Hz, ±10%) / 24 V DC |
| Power Consumption | Standby 11 W / Active 60 W |
| Signal Compatibility | Dry contact, TTL/CMOS 5–48 V, token system |
| Design | Registered design certification |
| Warranty | 10-year stainless steel warranty |
