The AR-1000 is a wall-mounted sensor-activated hand disinfectant dispenser manufactured from 304-grade CrNi stainless steel for touchless hand disinfection at entry points and production areas. Dimensions are 285 × 190 × 450 mm, weight is 6 kg. Delivers 3–5 ml of disinfectant per activation. A 5-litre container is placed directly into the housing bay. Controlled by a 12V electronic board.
AR-1000 Technical Specifications and System Configuration
The AR-1000 is designed as a compact wall-mounted unit providing continuous touchless hand disinfection at a fixed point at entry locations and production area access points.
Sensor-Activated Touchless Dispensing and Nozzle System

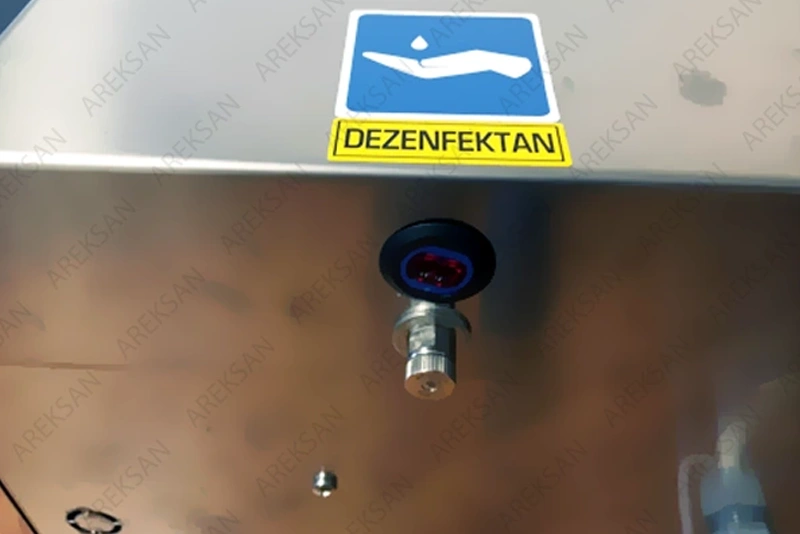

The photocell sensor automatically initiates disinfectant output when hands are detected. Dispensing is carried out through 304-grade stainless steel nozzles. Each activation delivers approximately 3–5 ml of alcohol-based disinfectant. No contact with any surface is required at any stage.

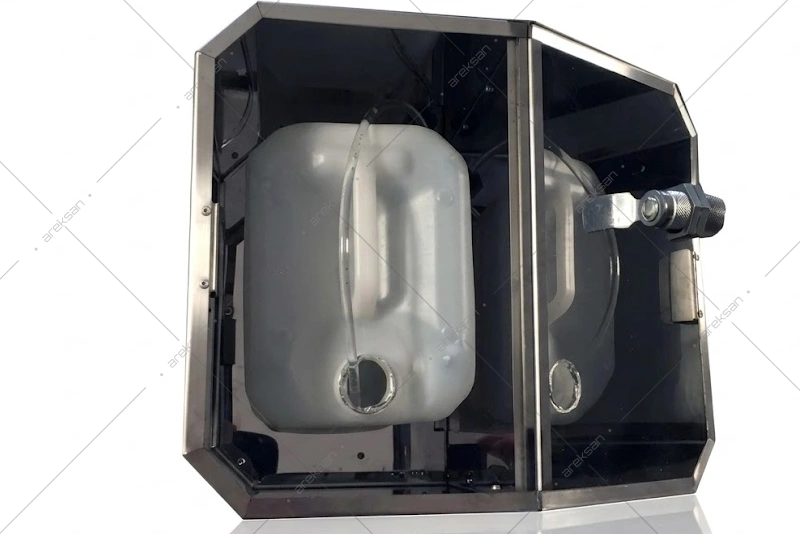

Disinfectant Container Bay and Electrical System
A 5-litre disinfectant container is placed directly into the housing bay; the system draws disinfectant directly from the container. Mains input is 220V, converted to 24V output. The system is controlled by a 12V electronic board. The 24V operating voltage prioritizes user safety.
Technical Specifications
- Model No.: AR-1000
- Dimensions: 285 × 190 × 450 mm
- Weight: 6 kg
- Material: 304-Grade CrNi Stainless Steel
- Mounting: Wall mounted
- Activation: Photocell sensor, touchless
- Spray Output: 3–5 ml per activation
- Nozzle: 304-Grade Stainless Steel
- Container Bay: 5-litre container compatible
- Power Input: 220V / Output 24V
- Control: 12V electronic board
Typical Applications
Healthcare facilities, food production plants, public-access buildings, and hygiene-controlled entry points where continuous touchless hand disinfection is required at a fixed wall-mounted location.
