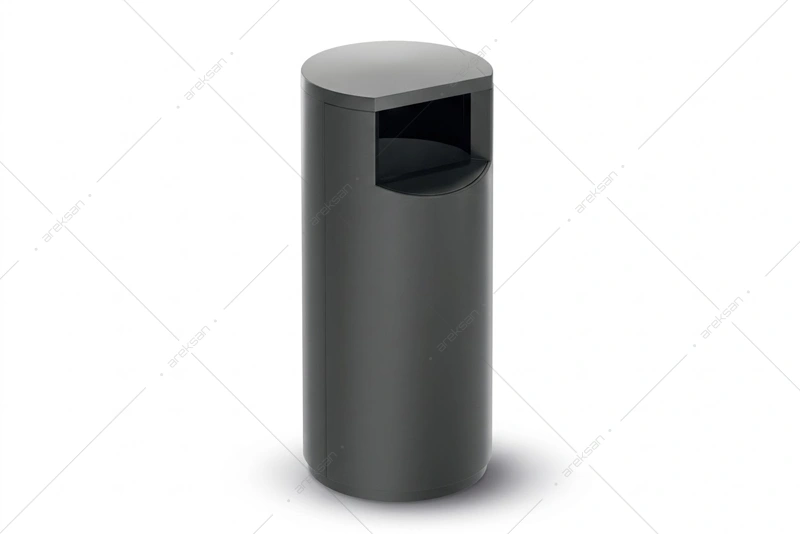

The SWB-143-A outdoor waste bin features a removable inner bucket and measures Ø20 cm in diameter and 95 cm in height, with a 30-liter capacity. Standard production uses DKP cold-rolled steel finished with electrostatic powder coating; 304 stainless steel is offered as an optional material. The lift-out inner bucket allows bag replacement without moving the outer body.
The SWB-143-A is a freestanding cylindrical bin with a closed top, a side disposal opening, and a separate liner bucket housed inside the outer shell. The outer body and inner bucket are produced as two distinct components. Material selection, surface coating, and color are specified per project, with both DKP and 304 stainless steel construction available.
Freestanding Outdoor Bin Construction and Material Options
Body Material
The standard outer body and inner bucket are fabricated from DKP cold-rolled steel. Optional 304 stainless steel construction is available when AISI 304 grade is required for both the outer shell and the inner liner bucket.
Surface Treatment and Color Customization
The DKP version receives an electrostatic powder coating applied to the cleaned and pre-treated outer body. Color is specified per project; any standard RAL code can be matched.
Removable Inner Bucket System
The inner bucket is accessed through the side opening of the outer shell and lifts out for bag changes and interior cleaning. The bucket is sized to fit the Ø20 cm housing diameter and accepts a standard refuse bag.
Construction Specifications
The body is a single welded cylindrical assembly with a closed top panel and a cut side opening. Weld seams are ground smooth and all edges are deburred. The unit sits directly on the ground without flange or anchoring hardware. Production is project-based; retail sales are not offered.
| Specification | Value |
|---|---|
| Product Code | SWB-143-A |
| Diameter | Ø20 cm |
| Height | 95 cm |
| Capacity | 30 liters |
| Standard Material | DKP cold-rolled steel |
| Optional Material | 304 stainless steel |
| Surface Finish (DKP) | Electrostatic powder coating |
| Color Options | Custom RAL code per project |
| Top Configuration | Closed top |
| Inner Bucket | Removable, lift-out type |
| Waste Access | Side opening |
| Mounting | Freestanding (no flange) |
| Liner Compatibility | Standard refuse bag |
| Production Type | Project-based manufacturing |
