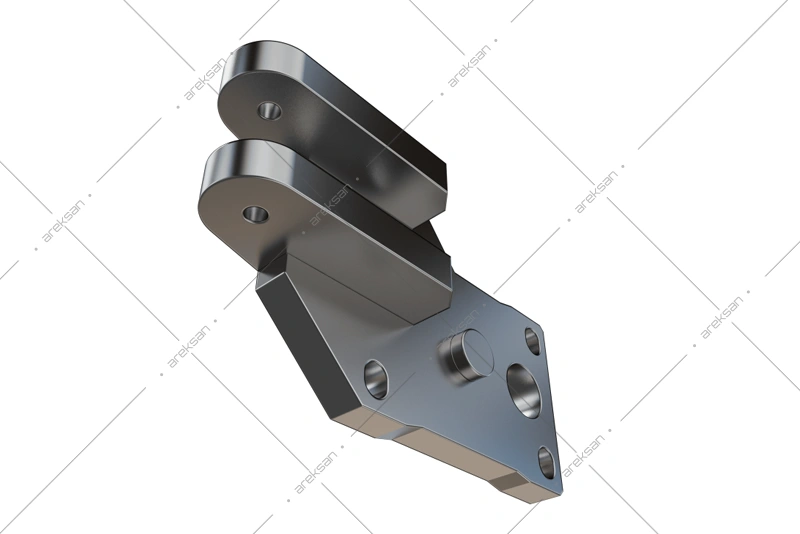

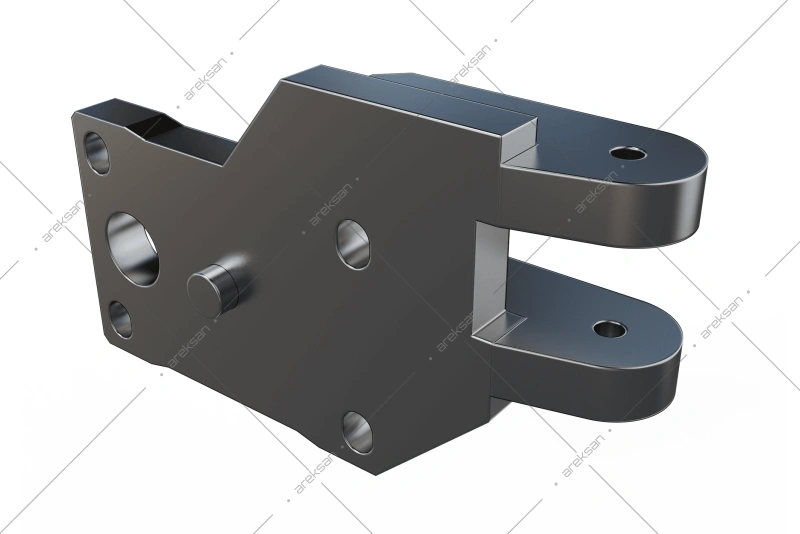

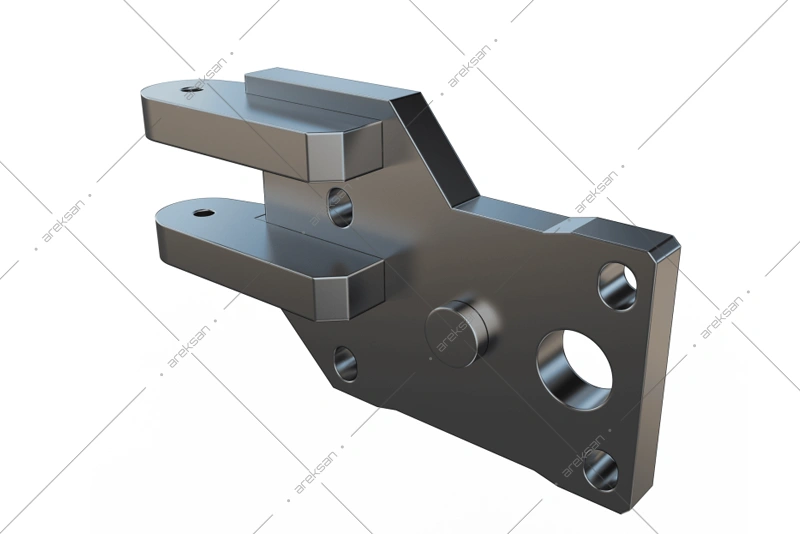

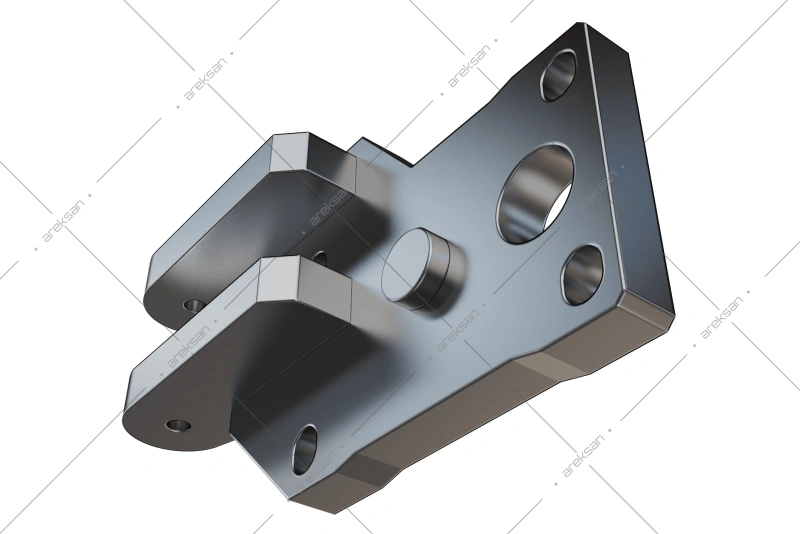

The AV-101 armored vehicle chassis connection component is a high-strength metal connection element integrated into the main chassis system of armored vehicles. Manufactured through CNC machining and finished with a corrosion resistant coating. Engineered to withstand military-grade mechanical stress, torque, impact and vibration loads. Manufactured on a project basis.
AV-101 Armored Vehicle Chassis Connection Component – Technical Specifications and Manufacturing
The AV-101 is produced through CNC machining with tight dimensional tolerances. Geometry is engineered to resist both horizontal and vertical load forces.
CNC Machined Production
The component is produced through CNC machining. Surface precision, positioning hole dimensional accuracy and mounting recess alignment are all delivered through this manufacturing method.
Structural Features
The thick-section material construction is suitable for heavy load transfer. Pin holes, positioning recesses and wide-surface mounting areas provide a fixed and stable connection to the main chassis.
Military-Grade Durability
The component is designed to operate under conditions of rapid acceleration, sudden braking, off-road impact and high torque loads. Geometry is optimized to resist both horizontal and vertical force loads.
Corrosion Resistant Coating
A corrosion resistant coating is applied to the surface. This treatment allows the component to deliver extended service life under conditions of mud, moisture, temperature variation and field deployment.
Technical Specifications
| Specification | AV-101 |
|---|---|
| Manufacturing Method | CNC machining |
| Material Structure | Thick section metal, high-strength |
| Surface Treatment | Corrosion resistant coating |
| Structural Elements | Pin holes, positioning recesses, mounting surfaces |
| Durability Class | Military-grade |
| Force Direction Resistance | Horizontal and vertical loads |
| Operating Conditions | Vibration, rapid acceleration, braking, off-road impact, torque |
| Field Condition Resistance | Mud, moisture, temperature variation |
| Sales Model | Project-based manufacturing |
